美国QCS海底管道连接系统有限公司

Quality Connector Systems, LLC

展位号：W1522

展品范围： 海底连接器
公司网址： www.qcsww.com
公司地址： 7250 W 43rd Street; Suite #100; Houston, Texas
邮编： 77092

公司简介：

美国QCS是一家专业制造海底管道连接系统的公司. 产品主要用于海底管道的连接, 修理, 新管道项目, 旧海管废弃, 带压开孔, 线路变更, 等等, 海低管道工程. 在深水领域, QCS设计并生产了用ROV 控制的深水海管维修卡子, 连接器. 除此而外, 公司有大量的库存海管维修系统以供世界各地的客户应急强修之用. 对没有库存的产品, QCS 也能提供快捷的供货周期.

最新展品：

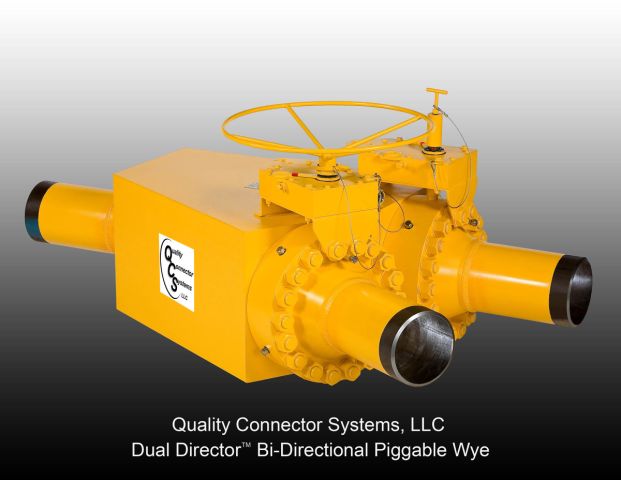

产品名称：双向可清管水下三通 产品描述： The QCS Director™ Bi-Directional Piggable Wye is a “Y”-shaped pipeline fitting designed to facilitate the pigging and cleaning of lateral deep or shallow water subsea pipeline systems through one predetermined leg. The Director™ Bi-Directional Piggable Wye has the unique ability to accommodate reverse flow pigging. The Director™ accommodates bi-directional pigging through the wye using an internal diverter sleeve which rotates within the main line bore of the wye to direct the pig. The diverter sleeve is actuated from the exterior of the wye, which can be operated by ROV or diver. Actuating the internal diverter sleeve rotates the sleeve to close the port to the lateral line permitting bi-directional pigging in the main line. Conventional pigging can still be performed in the mainline while the diverter sleeve is closed. The Director™ Wye permits conventional flow combining pigging operations when the diverter sleeve is in the open position. QCS Dual Director™ Bi-Directional Piggable Wye accommodates bi-directional pigging through the wye by using one mirror image internal director sleeve in both legs of the wye. The two director sleeves are rotated by two independent external actuators. The actuators can be operated with ROV or diver, depending on the specific application. Activating the diverter sleeve in the mainline rotates the sleeve to close the port to the lateral line, permitting bi-directorial pigging in the mainline. Activating the diverter sleeve in the lateral line rotates the sleeve to close the port to the mainline, permitting bi-directional pigging in the lateral line. When both diverter sleeves are in the open position the Dual Director ™ can be used for conventional flow combing pigging operations.

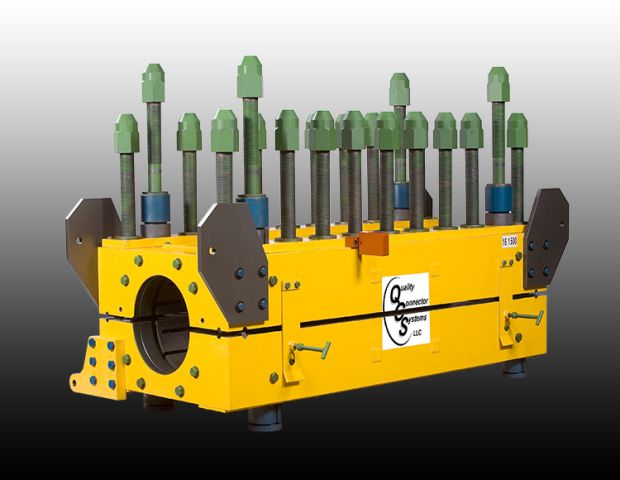

产品名称：深水堵漏卡(ROV控制) 产品描述： The QCS Diverless Clamp Connector is a mechanical split clamping device designed for multiple deepwater repair and recovery scenarios. Depending on the configuration of the clamping system, the Diverless Clamp Connector may be used as part of a spool piece repair system, a leak repair clamp or as a recovery tool. Some of the design features of the QCS Diverless Clamp Connector are as follows: • Collet Grips for unsurpassed structural attachment to the pipe • Standard Full Pressure End Load Structural Reinforcement • Reduced Pressure Boundary • Reduced Longitudinal Seal Length • Standard Annulus Test Feature • Standard Viton Seals • Fast reliable “Single-Set” simultaneous seal and grip actuation • Misalignment Capability • Pipe Ovality Tolerance • Bending Moments Capacity • Reversible Collet Gripping System Benefits • “Inboard” Seal design greatly reduced the pressure containing area of the device. • By placing the circumferential seals inboard of the collet grips, the design requires a much shorter longitudinal seal. Further, the juncture of the longitudinal seal with the circumferential seals is located towards the rigid center of the fitting, a position which yields optimal seal performance. • Simultaneous seal and grip actuation permits ease of installation using the specially designed recoverable running tool system that functions for multiple sizes. The same running tool is also used to set the body bolting. • All Running Tool operations are positioned vertically for easy ROV access Design The fitting is designed in general accordance with the methods defined by the Boiler and Pressure Vessel Code, ASME Section VIII, Division 2. Design factors and allowable stress limits are established by any applicable piping codes. Design Specifications The QCS Diverless Clamp Connector is available for a wide array of specifications including but not limited to the following: • ANSI Pressure Classes 300 through 2500 • API 6A Pressure Ratings 2000 through 5000(6B) and 2000 through 10000(6BX)

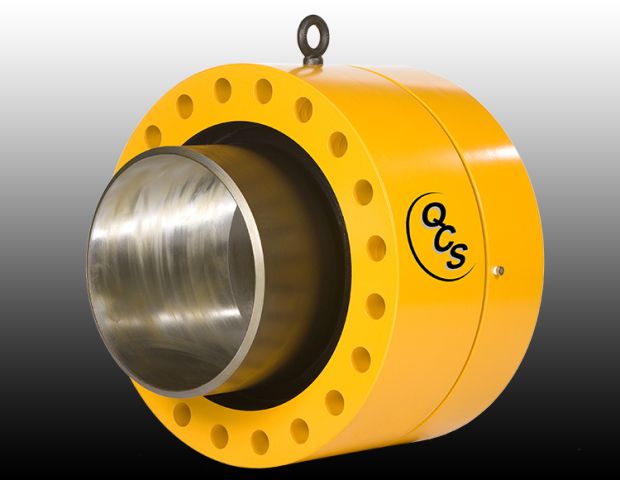

产品名称：球形法兰 产品描述： The Quality Connector Systems, LLC FlangeMate™ misalignment connector is a highly engineered ASME-compliant product which facilitates the connection of flanged tie-ins to underwater pipelines. The FlangeMate™ incorporates several design features which reduce both the time and cost to complete such flanged subsea pipeline connections without sacrificing long term operational integrity. Quality Connector Systems has installed hundreds of FlangeMate™ misalignment connectors in the 4” thru 42” size range, and currently stocks the connector in the 4” thru 24” size range. Inventory items can frequently be shipped within twenty-four hours of receipt of order. The benefits and features of the QCS FlangeMate™ misalignment Connector include: • Provides Angular adjustment of ±10° (20° included angle) • Bolt hole rotation which aligns the bolt holes with those of the weld neck flange to facilitate rapid bolt insertion. • Repeatable, integral metal-to-metal seal. • Annulus test port and seal test feature. • Enhanced wiper seal system to isolate the metal seal area from contaminants. • Designed to accommodate high-capacity flange spreader loading. For “a proven misalignment connector design backed by years of experience”, the Quality Connector Systems, LLC FlangeMate™ misalignment Connector is the right choice.

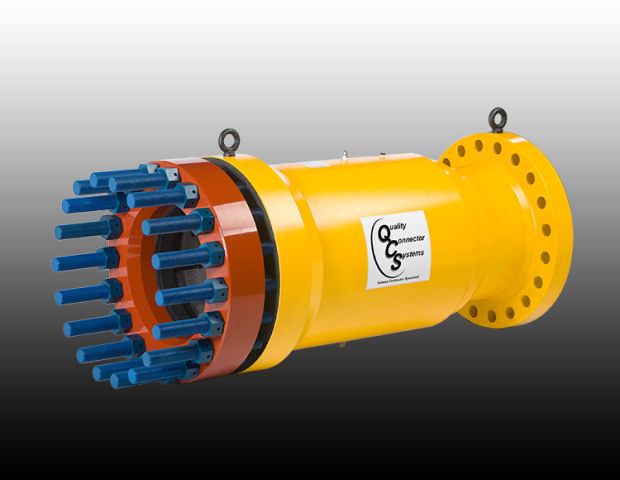

产品名称：海管机械式连接器 产品描述： -The GripLock™ Mechanical End Connector is utilized primarily for subsea pipeline repairs, re-routes, decommissioning operations, and abandonment projects. The GripLock™ mechanical end connector provides subsea pipeline operators with a proven means to permanently attach a flange to a subsea pipeline. Quality Connector Systems, LLC manufactures and maintains an inventory of 2” thru 24” GripLock™ mechanical end connectors, which permits fast turnaround on customer projects. Features: • Collet Grips for unsurpassed structural attachment to the pipe • Standard Dual Barrier Viton seals for long term integrity • Standard Annulus seal test feature • End Gap Adjustment of ½ the pipe diameter or 6”, whichever is greater • Fast reliable “Single-Set” simultaneous seal and grip actuation • Reversible Collet Grips Technical Specifications: • ASME Sec VIII Div 1, 2 and API 6H compliant design as applicable • Inboard seals & outboard grips for NACE compliance • NACE pressure-containing components • Increased pipe ovality tolerance • On-site technicians are available to assist with installation

产品名称：海管带压开孔连接器 产品描述： Quality Connector Systems, LLC manufactures and maintains an inventory of 8” thru 24” QualiTee™ Tap Fittings, which permits fast turnaround on customer projects. The QualiTee ™ Tap Fitting provides the means to pipeline operators to hot tap subsea pipelines without reducing operating pressure. Features: • Collet Gripping System which is pinned to the inner body so that they cannot be dislodged during installation. • Standard Full Pressure End Load Structural Reinforcement • Reduced Pressure Boundary • Reduced Longitudinal Seal Length • Standard Viton Seals • External and Internal Coating Benefits • “Inboard” Seal design greatly reduced the pressure containing area of the device. • Shortened longitudinal seal length which optimizes the seal performance • Reversible “Locked in Collet Grips” permit re-opening of the fitting even after installation. • Simultaneous setting of Grip and Seals speeds up installation.
